A Guide to the Digital Thread

What is a Digital Thread?

A digital thread is a framework that integrates product data across its entire lifecycle — from design through retirement. This connected data framework accelerates product development, improves performance, and resolves quality issues by maintaining traceability throughout all stages.

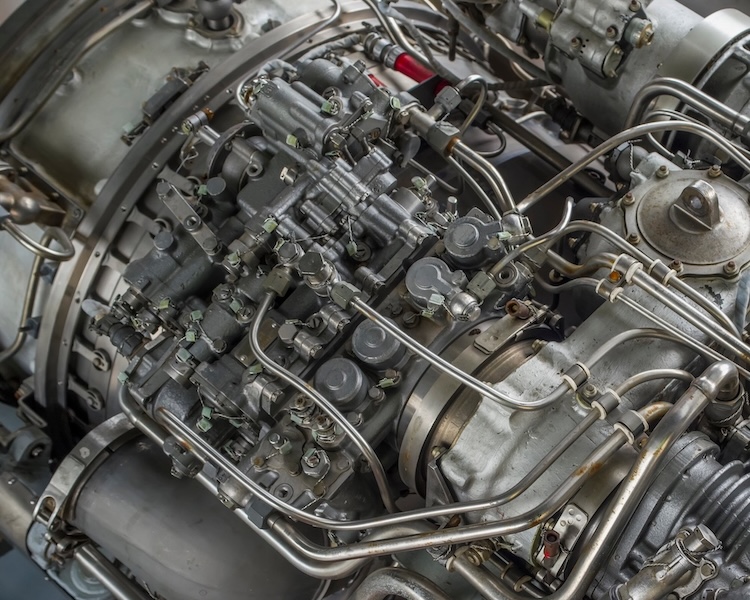

Let's follow a critical component - a hydraulic manifold used in aircraft and helicopters - through its lifecycle from design, through manufacturing, operation and maintenance to see how the digital thread comes together in the real world.

Building the Digital Thread for an Aerospace Hydraulic Manifold

In aerospace engineering, hydraulic manifolds direct high-pressure fluid through precision-machined internal passages to control critical aircraft functions: landing gear, flight controls, thrust reversers, and engine actuation. Component failure risks catastrophic consequences, making data traceability essential.

Requirements Definition: The digital thread begins with specific requirements: operating pressures (typically 3,000-5,000 psi), flow rates, temperature ranges (-65°F to +275°F), weight constraints, space limitations, reliability targets (failure rates below 10^-9 per flight hour), and environmental considerations. These requirements establish verifiable targets for subsequent design and manufacturing.

Material Selection: Requirements drive material selection: aluminum alloys (6061-T6, 7075-T6) for lightweight applications, stainless steel (303, 304, 316) for high-temperature environments, or titanium alloys for specialized applications. The digital thread maintains material certification, composition analysis, heat treatment verification, and mechanical property testing results.

Design Development: Engineers create 3D CAD models with precise port specifications (thread standards, surface finishes, tolerances) and internal passage geometry. Each port serves a specific function: primary pressure supply ports handle maximum pressure, return ports direct fluid back to reservoirs, and servo control ports manage actuator pressure. The digital model captures these details with full geometric dimensioning and tolerancing.

Performance Simulation: Before manufacturing, digital simulations verify hydraulic performance—analyzing pressure drops (target: <50 psi at full flow), flow velocities (target: <25 ft/sec), turbulence factors, cavitation risks, and thermal expansion effects. Simulations often reveal optimization opportunities like rounding internal corners to reduce pressure drops or adjusting passage diameters for balanced flow.

Manufacturing Process Planning: Manufacturing engineers develop detailed process plans: machine tool selection for required accuracy (±0.001"), fixturing design to maintain datum references, and statistical process control parameters. The typical sequence includes raw material procurement, initial machining, primary drilling, cross-drilling, threading, deburring, surface treatments, and inspection—with the digital thread maintaining links between each operation and design requirements.

Advanced Manufacturing: Production employs specialized equipment: 5-axis CNC machining for complex port angles, deep-hole drilling equipment, and specialized deburring tools. Modern manufacturing systems feed real-time data back to the digital thread: actual machining parameters, tool wear measurements, vibration signatures, and dimensional accuracy trends. Computer-Aided Manufacturing (CAM) programming transforms the 3D CAD model into precise digital instructions for CNC machinery. For hydraulic manifolds with complex internal passages, CAM engineers create sophisticated toolpaths that accommodate multi-axis movements while avoiding collisions and ensuring optimal surface finishes. The programming includes detailed drilling sequences with specific depths for intersecting passages, specialized tool selection for different operations, and precisely calculated cutting speeds and feeds based on material properties. Advanced CAM systems simulate the entire machining process before any physical cutting begins, verifying tool clearances and identifying potential issues. For aerospace components, these simulations must account for fixture designs that maintain critical datums through multiple setups while providing rigid workholding to prevent the part movement that could lead to defects like those seen in the Rolls-Royce case study. The resulting NC code becomes part of the digital thread, linking manufacturing instructions directly to design intent and enabling traceability of specific machining parameters to individual component features.

Cleaning and Surface Treatment: Aerospace hydraulic components undergo rigorous cleaning and treatment: multi-stage ultrasonic cleaning, chemical degreasing, material-specific surface treatments (passivation for stainless steel, anodizing for aluminum), and application of thread sealants. Process parameters become part of the digital thread, ensuring consistency across production.

Testing and Inspection: Verification includes coordinate measuring machine (CMM) inspection, borescope examination of internal passages, pressure decay testing, helium leak testing, and non-destructive evaluation. Functional testing subjects components to proof pressure (typically 1.5× operating pressure), flow rate verification, vibration testing, and temperature cycling. All results feed into the digital thread, establishing a baseline performance profile.

Integration and Certification: As the manifold integrates into aircraft systems, the digital thread captures assembly data: fitting torque values, seal certifications, and initial system pressure checks. The connected nature of this data framework streamlines regulatory approval by providing complete traceability from design through manufacturing to final testing.

In-Service Monitoring: Once installed, the digital thread continues with operational data: installation records, ground tests, flight performance, and maintenance inspections. Modern aircraft health monitoring systems track hydraulic system parameters during flight, comparing actual performance against design predictions.

Maintenance and End-of-Life Analysis: Throughout service life, maintenance activities enrich the digital history: inspection results, fluid analysis, part replacements, and repair procedures. When components reach retirement, engineers analyze service life, wear patterns, and maintenance history to improve future designs—closing the loop in the digital thread.

Conclusion: The digital thread for aerospace hydraulic manifolds represents sophisticated data integration spanning design, manufacturing, certification, operation, and retirement. This unbroken chain of information ensures safety and reliability while enabling continuous improvement through data-driven insights.

Case Study: Root-Cause Analysis with a Digital Thread

The Incident

An Airbus aircraft taking off from Singapore experienced a catastrophic engine failure that could have ended in tragedy. The engine caught fire, hydraulic systems were damaged, and engine parts fell onto buildings below. Fortunately, the pilots managed to return the aircraft safely to the airport, and no one was injured.

But what happened next demonstrates the critical importance of what engineers call "the digital thread." In this case, the digital thread is the complete lifecycle data of every aircraft component, connecting four critical domains:

1. Flight data: operational information from the aircraft's systems
2. Maintenance records: documentation of all service and repairs
3. Manufacturing information: how components were produced
4. Design specifications: original engineering requirements

This comprehensive data trail allows investigators to trace any component's history from design to failure, creating a powerful tool for root cause analysis.

The Investigation: Following the Digital Thread

When aircraft incidents occur, investigators must quickly determine the cause. Was it:

1. Something that happened during flight? (bird strike, weather)
2. A maintenance issue? (improper service, missed inspection)
3. A manufacturing defect? (production error)
4. A design flaw? (engineering miscalculation)

Only by understanding the cause can they determine if other aircraft might be at risk. This particular investigation demonstrates perfectly how the digital thread connects these four domains.

Flight Data Analysis: Investigators examined data from the flight data recorder and cockpit voice recordings. When the failure occurred, multiple warning systems activated in the cockpit, particularly alerts about the green hydraulic system - one of three independent systems powering critical flight controls. The pilots followed established procedures perfectly, stabilizing the aircraft and making a safe emergency landing.

The flight data showed no external cause for the failure - no bird strikes, unusual weather, or pilot error. The problem had to lie elsewhere.

Maintenance Record Examination: Following the digital thread to maintenance records, investigators found that all required servicing had been performed according to schedule. There were no anomalies in previous inspections that would have indicated an imminent failure. The maintenance history was clean.

Design Review: Investigators accessed the original CAD models and engineering specifications for the hydraulic components and related engine parts. They found that the design itself met all required safety standards and had passed all simulation tests. The problem wasn't in the blueprints.

Manufacturing Analysis: Finally, the investigation team examined manufacturing records and discovered the smoking gun: oil pipes within the engine had been improperly manufactured. The critical failure point was in a "stub pipe" – a short pipe that carried lubricating oil to a bearing in the engine.

The pipe had been machined incorrectly, creating an uneven wall thickness where the internal circumference was not concentric with the external circumference. This resulted in one side being too thick (1.42 mm) while the opposite side was dangerously thin (just 0.35 mm).

The Exact Manufacturing Error

The investigation revealed that during a process called counter-boring, the fixture holding the pipe - the "hub" - shifted slightly during machining. This tiny movement during precision drilling created a problem - the inner diameter of the hole and the outer diameter of the hole were no longer perfectly concentric. The tube wall was thinner (and weaker) on one side than the other.

This seemingly minor flaw led to a catastrophic sequence:

1. The thin section developed a fatigue crack under normal operational stress
2. This crack allowed oil to leak into an internal space with extremely high temperatures (365°C/689°F)
3. The oil atomized under pressure and ignited
4. The resulting fire heated the turbine driveshaft to the point of failure
5. Engine components separated, rupturing the engine casing and damaging hydraulic systems

This defect had escaped through quality control inspections, but was obvious once the data was reconstructed.

The Power of the Digital Thread: Preventing Future Disasters

What made this incident particularly significant was the discovery that this wasn't an isolated defect. By following the digital thread back to manufacturing, investigators were able to identify three additional engines with the exact same fault. These engines were immediately removed from service, potentially preventing future catastrophes.

Without the digital thread connecting flight data, maintenance records, design specifications, and manufacturing processes, identifying the root cause and finding other vulnerable engines would have been far more difficult and time-consuming - perhaps impossible before another incident occurred.

Lessons Learned

This case demonstrates how even tiny errors in precision manufacturing can cascade into catastrophic failures when components operate under extreme conditions. More importantly, it showcases the critical importance of maintaining a comprehensive digital thread throughout the aerospace component lifecycle.

The digital thread enabled investigators to:

• Quickly isolate the failure point within the hydraulic system
• Trace affected components back to their manufacturing origins
• Determine whether other engines were at risk
• Implement targeted improvements to prevent similar failures

By strengthening the connections between design, manufacturing, quality control, and maintenance through the digital thread, the aerospace industry continues to improve safety and reliability even as aircraft systems grow increasingly complex.

The next time you board a flight, remember that behind every safe journey lies an invisible network of data - the digital thread - connecting every aspect of the aircraft's lifecycle and helping to ensure your safety.
